查看问题详情
编号 | 项目 | 分类 | 查看权限 | 报告日期 | 最后更新 |
---|---|---|---|---|---|
0000488 | Anolis OS 7 | General | public | 2021-11-08 14:06 | 2021-11-17 19:21 |
报告员 | yinyongchen | 分派给 | yunqi-zwt | ||
优先级 | normal | 严重性 | minor | 出现频率 | always |
状态 | resolved | 处理状况 | open | ||
平台 | aarch64 | 操作系统 | Anolis OS | 操作系统版本 | 7.7 |
标题 | 0000488: [Anolis 7.7-anck-aarch64][vhd][ECS] 20211105镜像安装后设置crashkernel=256M,echo c >/proc/sysrq-trigger,系统不能正常启动,设置512M时crash文件不能正常解析 | ||||
描述 | [缺陷描述]: 使用镜像 anolisos_7_7_arm64_20G_anck_alibase_20211105.vhd 启动云上ecs类型 : ecs.g6r.large ecs.g6r.16xlarge 1、设置crashkernel=256M,echo c >/proc/sysrq-trigger,系统不能正常启动,日志见附件 2、设置512M时crash文件不能正常解析,显示如下: # ls -l /var/crash/127.0.0.1-2021-11-08-11\:09\:49/ total 70140 -rw------- 1 root root 71722009 Nov 8 11:09 vmcore -rw-r--r-- 1 root root 96715 Nov 8 11:09 vmcore-dmesg.txt # crash /usr/lib/debug/lib/modules/4.19.91-24.8.an7.aarch64/vmlinux /var/crash/scripts/vmcore crash 7.2.3-10.an7 Copyright (C) 2002-2017 Red Hat, Inc. Copyright (C) 2004, 2005, 2006, 2010 IBM Corporation Copyright (C) 1999-2006 Hewlett-Packard Co Copyright (C) 2005, 2006, 2011, 2012 Fujitsu Limited Copyright (C) 2006, 2007 VA Linux Systems Japan K.K. Copyright (C) 2005, 2011 NEC Corporation Copyright (C) 1999, 2002, 2007 Silicon Graphics, Inc. Copyright (C) 1999, 2000, 2001, 2002 Mission Critical Linux, Inc. This program is free software, covered by the GNU General Public License, and you are welcome to change it and/or distribute copies of it under certain conditions. Enter "help copying" to see the conditions. This program has absolutely no warranty. Enter "help warranty" for details. NOTE: stdin: not a tty GNU gdb (GDB) 7.6 Copyright (C) 2013 Free Software Foundation, Inc. License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html> This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Type "show copying" and "show warranty" for details. This GDB was configured as "aarch64-unknown-linux-gnu"... please wait... (gathering module symbol data) crash: invalid size request: -281474960204252 type: "module gpl symbol strings" buf_1K_used: 399 buf_2K_used: 1 buf_4K_used: 0 buf_8K_used: 0 buf_32K_used: 5 buf_1K_ovf: 0 buf_2K_ovf: 0 buf_4K_ovf: 0 buf_8K_ovf: 0 buf_32K_ovf: 0 buf_1K_maxuse: 3 of 10 buf_2K_maxuse: 1 of 10 buf_4K_maxuse: 0 of 5 buf_8K_maxuse: 0 of 5 buf_32K_maxuse: 1 of 1 buf_inuse[5]: [3][0][0][0][0] smallest: -281474960204252 largest: 1769526535996 embedded: 3 max_embedded: 3 mallocs: 0 frees: 0 reqs/total: 406/-279705433465852 average size: -688929639078 crash: cannot allocate any more memory! [重现概率] 必现 [重现环境] 内核信息: # uname -r 4.19.91-23.1.an8.x86_64 # rpm -qa | grep kernel kernel-tools-4.19.91-24.8.an7.aarch64 abrt-addon-kerneloops-2.1.11-55.0.3.an7.aarch64 kernel-4.19.91-24.8.an7.aarch64 kernel-tools-libs-4.19.91-24.8.an7.aarch64 kernel-devel-4.19.91-24.8.an7.aarch64 kernel-headers-4.19.91-24.8.an7.aarch64 kernel-debuginfo-4.19.91-24.8.an7.aarch64 kernel-debuginfo-common-aarch64-4.19.91-24.8.an7.aarch64 # rpm -qa | grep -E "kexec-tools|crash" kexec-tools-2.0.15-33.an7.aarch64 crash-7.2.3-10.an7.aarch64 # cat /proc/cmdline BOOT_IMAGE=/boot/vmlinuz-4.19.91-24.8.an7.aarch64 root=UUID=4c43cb58-7d78-48a4-883e-4bb7c1657df2 ro crashkernel=0M-2G:0M,2G-8G:192M,8G-:256M cryptomgr.notests cgroup.memory=nokmem rcupdate.rcu_cpu_stall_timeout=300 vring_force_dma_api rhgb quiet console=tty0 biosdevname=0 net.ifnames=0 console=ttyAMA0,115200n8 noibrs nvme_core.io_timeout=4294967295 # free -h total used free shared buff/cache available Mem: 7.4G 163M 4.8G 736K 2.4G 7.0G Swap: 0B 0B 0B # lscpu Architecture: aarch64 Byte Order: Little Endian CPU(s): 2 On-line CPU(s) list: 0,1 Thread(s) per core: 1 Core(s) per socket: 2 Socket(s): 1 NUMA node(s): 1 Model: 1 BogoMIPS: 50.00 NUMA node0 CPU(s): 0,1 Flags: fp asimd evtstrm aes pmull sha1 sha2 crc32 atomics fphp asimdhp cpuid asimdrdm lrcpc dcpop asimddp ssbs | ||||
问题重现步骤 | 1、使用镜像 anolisos_7_7_arm64_20G_anck_alibase_20211105.vhd 安装云上实例 ecs.g6r.large 或 ecs.g6r.16xlarge 2、查看/proc/cmdline,crashkernel默认为256M,使用echo c >/proc/sysrq-trigger 触发crash,查看是否可以在重启后正常进入系统 3、设置crashkernel为512M,再次触发crash,安装kernel-debuginfo包后解析vmcore文件,查看是否可以正常解析 | ||||
标签 | 没加标签. | ||||
|
long_text_2021-11-08-10-15-31.txt (64,281 字节)
able header Valid primary and Valid backup partition table Partition entries read block success Number of partition entries: 128 start check partition entries End check partition entries Index : 0 Start LBA : 800 End LBA : 1FF7FF Partition size: 1FF000 Start : 100000 End : 3FEFFE00 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22E05C818 InstallProtocolInterface: 964E5B21-6459-11D2-8E39-00A0C969723B 22E04E030 InstallProtocolInterface: 8CF2F62C-BC9B-4821-808D-EC9EC421A1A0 22E04E0E8 InstallProtocolInterface: C12A7328-F81F-11D2-BA4B-00A0C93EC93B 0 Index : 1 Start LBA : 1FF800 End LBA : 27FF7FF Partition size: 2600000 Start : 3FF00000 End : 4FFEFFE00 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22E04E518 InstallProtocolInterface: 964E5B21-6459-11D2-8E39-00A0C969723B 22E04E2B0 InstallProtocolInterface: 8CF2F62C-BC9B-4821-808D-EC9EC421A1A0 22E04E368 InstallProtocolInterface: EBD0A0A2-B9E5-4433-87C0-68B6B72699C7 0 Prepare to Free Pool InstallProtocolInterface: CE345171-BA0B-11D2-8E4F-00A0C969723B 22E04EB20 BlockSize : 512 LastBlock : 1FEFFF InstallProtocolInterface: 964E5B22-6459-11D2-8E39-00A0C969723B 22E053030 Installed Fat filesystem on 22E05CB18 InstallProtocolInterface: CE345171-BA0B-11D2-8E4F-00A0C969723B 22E04E920 BlockSize : 512 LastBlock : 25FFFFF InstallProtocolInterface: FA920010-6785-4941-B6EC-498C579F160A 22E052E20 VirtioBlkInit: LbaSize=0x200[B] NumBlocks=0x5000000[Lba] VirtioBlkInit: FirstAligned=0x0[Lba] PhysBlkSize=0x1[Lba] VirtioBlkInit: OptimalTransferLengthGranularity=0x0[Lba] InstallProtocolInterface: 964E5B21-6459-11D2-8E39-00A0C969723B 22E052C10 InstallProtocolInterface: CE345171-BA0B-11D2-8E4F-00A0C969723B 22E052820 BlockSize : 512 LastBlock : 4FFFFFF InstallProtocolInterface: FA920010-6785-4941-B6EC-498C579F160A 22E0521A0 InstallProtocolInterface: A19832B9-AC25-11D3-9A2D-0090273FC14D 22E04F028 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22E052398 InstallProtocolInterface: 9E23D768-D2F3-4366-9FC3-3A7ABA864374 22E05C1B0 InstallProtocolInterface: F36FF770-A7E1-42CF-9ED2-56F0F271F44C 22E035740 InstallProtocolInterface: 7AB33A91-ACE5-4326-B572-E7EE33D39F16 22C8ABB40 InstallProtocolInterface: F44C00EE-1F2C-4A00-AA09-1C9F3E0800A3 22C8AB6A0 InstallProtocolInterface: 7AB33A91-ACE5-4326-B572-E7EE33D39F16 22C856BC0 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22C856998 InstallProtocolInterface: 330D4706-F2A0-4E4F-A369-B66FA8D54385 22C8578B8 InstallProtocolInterface: C51711E7-B4BF-404A-BFB8-0A048EF1FFE4 22C8570A0 InstallProtocolInterface: 5B446ED1-E30B-4FAA-871A-3654ECA36080 22C857600 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22C852D18 InstallProtocolInterface: 330D4706-F2A0-4E4F-A369-B66FA8D54385 22C8520A0 InstallProtocolInterface: E4F61863-FE2C-4B56-A8F4-08519BC439DF 22C852098 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C851A20 InstallProtocolInterface: 83F01464-99BD-45E5-B383-AF6305D8E9E6 22C8517A0 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C84DBA0 InstallProtocolInterface: 3AD9DF29-4501-478D-B1F8-7F7FE70E50F3 22C84E638 InstallProtocolInterface: 9D9A39D8-BD42-4A73-A4D5-8EE94BE11380 22C84E7A0 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C8486A0 InstallProtocolInterface: 3AD9DF29-4501-478D-B1F8-7F7FE70E50F3 22C848938 InstallProtocolInterface: 2FE800BE-8F01-4AA6-946B-D71388E1833F 22C848BA0 InstallProtocolInterface: 7AB33A91-ACE5-4326-B572-E7EE33D39F16 22C8477C0 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22C847718 InstallProtocolInterface: 330D4706-F2A0-4E4F-A369-B66FA8D54385 22C845FE8 InstallProtocolInterface: EC835DD3-FE0F-617B-A621-B350C3E13388 22C845020 InstallProtocolInterface: 937FE521-95AE-4D1A-8929-48BCD90AD31A 22C845F70 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C8413A0 InstallProtocolInterface: 00720665-67EB-4A99-BAF7-D3C33A1C7CC9 22C841640 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C83D2A0 InstallProtocolInterface: EC20EB79-6C1A-4664-9A0D-D2E4CC16D664 22C83D5C0 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C83A820 InstallProtocolInterface: 66ED4721-3C98-4D3E-81E3-D03DD39A7254 22C83AC20 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C837C20 InstallProtocolInterface: 4F948815-B4B9-43CB-8A33-90E060B34955 22C837438 InstallProtocolInterface: 9FB9A8A1-2F4A-43A6-889C-D0F7B6C47AD5 22C838330 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C8344A0 InstallProtocolInterface: 4F948815-B4B9-43CB-8A33-90E060B34955 22C834C38 InstallProtocolInterface: D9760FF3-3CCA-4267-80F9-7527FAFA4223 22C834FA0 InstallProtocolInterface: B95E9FDA-26DE-48D2-8807-1F9107AC5E3A 22C828030 InstallProtocolInterface: 8A219718-4EF5-4761-91C8-C0F04BDA9E56 22C8330A0 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C827C20 InstallProtocolInterface: 3AD9DF29-4501-478D-B1F8-7F7FE70E50F3 22C827038 InstallProtocolInterface: 78247C57-63DB-4708-99C2-A8B4A9A61F6B 22C8331B0 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C8275A0 InstallProtocolInterface: 3AD9DF29-4501-478D-B1F8-7F7FE70E50F3 22C827338 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C8269A0 InstallProtocolInterface: 3AD9DF29-4501-478D-B1F8-7F7FE70E50F3 22C8260B8 InstallProtocolInterface: F4B427BB-BA21-4F16-BC4E-43E416AB619C 22C825030 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C825CA0 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22C825918 InstallProtocolInterface: 56EC3091-954C-11D2-8E3F-00A0C969723B 22C825828 InstallProtocolInterface: 03C4E603-AC28-11D3-9A2D-0090273FC14D 22C828120 InstallProtocolInterface: A19832B9-AC25-11D3-9A2D-0090273FC14D 22E04F028 InstallProtocolInterface: 87C8BAD7-0595-4053-8297-DEDE395F5D5B 22C824040 InstallProtocolInterface: BF0A78BA-EC29-49CF-A1C9-7AE54EAB6A51 22C8241B8 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C8244A0 InstallProtocolInterface: 4F948815-B4B9-43CB-8A33-90E060B34955 22C8247B8 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C8238A0 InstallProtocolInterface: 4F948815-B4B9-43CB-8A33-90E060B34955 22C8230B8 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C822020 InstallProtocolInterface: 09576E91-6D3F-11D2-8E39-00A0C969723B 22C822E18 InstallProtocolInterface: 56EC3091-954C-11D2-8E3F-00A0C969723B 22C825328 InstallProtocolInterface: 03C4E603-AC28-11D3-9A2D-0090273FC14D 22C828120 InstallProtocolInterface: A19832B9-AC25-11D3-9A2D-0090273FC14D 22E04F028 InstallProtocolInterface: 65530BC7-A359-410F-B010-5AADC7EC2B62 22C822838 InstallProtocolInterface: 41D94CD2-35B6-455A-8258-D4E51334AADD 22C8210A0 InstallProtocolInterface: FA3CDE4C-87C2-427D-AEDE-7DD096C88C58 22C8229B0 InstallProtocolInterface: 46E44855-BD60-4AB7-AB0D-A679B9447D77 22C820138 InstallProtocolInterface: 2C8759D5-5C2D-66EF-925F-B66C101957E2 22C820AA0 InstallProtocolInterface: 28BE27E5-66CC-4A31-A315-DB14C3744D85 22C8212B0 InstallProtocolInterface: FA920010-6785-4941-B6EC-498C579F160A 22C81F2A0 InstallProtocolInterface: FA920010-6785-4941-B6EC-498C579F160A 22C81F0A0 InstallProtocolInterface: FA920010-6785-4941-B6EC-498C579F160A 22C81E020 BlockSize : 512 LastBlock : 4FFFFFF Valid efi partition table header Valid efi partition table header Valid primary and Valid backup partition table Partition entries read block success Number of partition entries: 128 start check partition entries End check partition entries Index : 0 Start LBA : 800 End LBA : 1FF7FF Partition size: 1FF000 Start : 100000 End : 3FEFFE00 Index : 1 Start LBA : 1FF800 End LBA : 27FF7FF Partition size: 2600000 Start : 3FF00000 End : 4FFEFFE00 Prepare to Free Pool BlockSize : 512 LastBlock : 25FFFFF BlockSize : 512 LastBlock : 4FFFFFF MnpAddFreeTxBuf: Add TxBufWrap 22C817018, TxBuf 22C817041 MnpAddFreeTxBuf: Add TxBufWrap 22C817698, TxBuf 22C8176C1 MnpAddFreeTxBuf: Add TxBufWrap 22C816018, TxBuf 22C816041 MnpAddFreeTxBuf: Add TxBufWrap 22C816698, TxBuf 22C8166C1 MnpAddFreeTxBuf: Add TxBufWrap 22C815018, TxBuf 22C815041 MnpAddFreeTxBuf: Add TxBufWrap 22C815698, TxBuf 22C8156C1 MnpAddFreeTxBuf: Add TxBufWrap 22C814018, TxBuf 22C814041 MnpAddFreeTxBuf: Add TxBufWrap 22C814698, TxBuf 22C8146C1 MnpAddFreeTxBuf: Add TxBufWrap 22C813018, TxBuf 22C813041 MnpAddFreeTxBuf: Add TxBufWrap 22C813698, TxBuf 22C8136C1 MnpAddFreeTxBuf: Add TxBufWrap 22C812018, TxBuf 22C812041 MnpAddFreeTxBuf: Add TxBufWrap 22C812698, TxBuf 22C8126C1 MnpAddFreeTxBuf: Add TxBufWrap 22C811018, TxBuf 22C811041 MnpAddFreeTxBuf: Add TxBufWrap 22C811698, TxBuf 22C8116C1 MnpAddFreeTxBuf: Add TxBufWrap 22C810018, TxBuf 22C810041 MnpAddFreeTxBuf: Add TxBufWrap 22C810698, TxBuf 22C8106C1 MnpAddFreeTxBuf: Add TxBufWrap 22C80F018, TxBuf 22C80F041 MnpAddFreeTxBuf: Add TxBufWrap 22C80F698, TxBuf 22C80F6C1 MnpAddFreeTxBuf: Add TxBufWrap 22C80E018, TxBuf 22C80E041 MnpAddFreeTxBuf: Add TxBufWrap 22C80E698, TxBuf 22C80E6C1 MnpAddFreeTxBuf: Add TxBufWrap 22C80D018, TxBuf 22C80D041 MnpAddFreeTxBuf: Add TxBufWrap 22C80D698, TxBuf 22C80D6C1 MnpAddFreeTxBuf: Add TxBufWrap 22C80C018, TxBuf 22C80C041 MnpAddFreeTxBuf: Add TxBufWrap 22C80C698, TxBuf 22C80C6C1 MnpAddFreeTxBuf: Add TxBufWrap 22C80B018, TxBuf 22C80B041 MnpAddFreeTxBuf: Add TxBufWrap 22C80B698, TxBuf 22C80B6C1 MnpAddFreeTxBuf: Add TxBufWrap 22C80A018, TxBuf 22C80A041 MnpAddFreeTxBuf: Add TxBufWrap 22C80A698, TxBuf 22C80A6C1 MnpAddFreeTxBuf: Add TxBufWrap 22C809018, TxBuf 22C809041 MnpAddFreeTxBuf: Add TxBufWrap 22C809698, TxBuf 22C8096C1 MnpAddFreeTxBuf: Add TxBufWrap 22C808018, TxBuf 22C808041 MnpAddFreeTxBuf: Add TxBufWrap 22C808698, TxBuf 22C8086C1 [Bds]OsIndication: 0000000000000000 [Bds]=============Begin Load Options Dumping ...============= Driver Options: SysPrep Options: Boot Options: Boot0000: UiApp 0x0109 Boot0001: UEFI Misc Device 0x0001 Boot0002: UEFI Misc Device 2 0x0001 Boot0003: UEFI Misc Device 3 0x0001 Boot0004: UEFI Misc Device 4 0x0001 Boot0005: UEFI PXEv4 (MAC:00163E084390) 0x0001 Boot0006: UEFI PXEv6 (MAC:00163E084390) 0x0001 Boot0007: EFI Internal Shell 0x0001 PlatformRecovery Options: PlatformRecovery0000: Default PlatformRecovery 0x0001 [Bds]=============End Load Options Dumping============= [Bds]BdsWait ...Zzzzzzzzzzzz... [Bds]Exit the waiting! [Bds]Stop Hotkey Service! [Bds]UnregisterKeyNotify: 000C/0000 Success [Bds]UnregisterKeyNotify: 0017/0000 Success [Bds]UnregisterKeyNotify: 0000/000D Success MemoryAttributesTable: Version - 0x00000001 NumberOfEntries - 0x0000001A DescriptorSize - 0x00000030 Entry (0x2C807428) Type - 0x6 PhysicalStart - 0x000000022BC80000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2C807458) Type - 0x5 PhysicalStart - 0x000000022BCD0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807488) Type - 0x5 PhysicalStart - 0x000000022BCE0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8074B8) Type - 0x5 PhysicalStart - 0x000000022BCF0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C8074E8) Type - 0x6 PhysicalStart - 0x000000022BD20000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2C807518) Type - 0x5 PhysicalStart - 0x000000022BD70000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807548) Type - 0x5 PhysicalStart - 0x000000022BD80000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C807578) Type - 0x5 PhysicalStart - 0x000000022BD90000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C8075A8) Type - 0x6 PhysicalStart - 0x000000022BDC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x00000000000000A0 Attribute - 0x8000000000004000 Entry (0x2C8075D8) Type - 0x5 PhysicalStart - 0x000000022BE60000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807608) Type - 0x5 PhysicalStart - 0x000000022BE70000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000020 Attribute - 0x8000000000020000 Entry (0x2C807638) Type - 0x5 PhysicalStart - 0x000000022BE90000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C807668) Type - 0x6 PhysicalStart - 0x000000022BEC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x00000000000000F0 Attribute - 0x8000000000004000 Entry (0x2C807698) Type - 0x5 PhysicalStart - 0x000000022BFB0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C8076C8) Type - 0x5 PhysicalStart - 0x000000022BFC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8076F8) Type - 0x5 PhysicalStart - 0x000000022BFD0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C807728) Type - 0x6 PhysicalStart - 0x000000022C040000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000020 Attribute - 0x8000000000004000 Entry (0x2C807758) Type - 0x5 PhysicalStart - 0x000000022C060000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807788) Type - 0x5 PhysicalStart - 0x000000022C070000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8077B8) Type - 0x5 PhysicalStart - 0x000000022C080000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000040 Attribute - 0x8000000000004000 Entry (0x2C8077E8) Type - 0x5 PhysicalStart - 0x000000022C0C0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C807818) Type - 0x5 PhysicalStart - 0x000000022C0D0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C807848) Type - 0x5 PhysicalStart - 0x000000022F3E0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2C807878) Type - 0x5 PhysicalStart - 0x000000022F430000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8078A8) Type - 0x5 PhysicalStart - 0x000000022F440000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C8078D8) Type - 0x6 PhysicalStart - 0x000000022F480000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000120 Attribute - 0x8000000000004000 Memory Previous Current Next Type Pages Pages Pages ====== ======== ======== ======== 09 00000000 000000B0 000000DC 0A 00000000 00000020 00000028 00 00000000 00000000 00000000 06 0000012C 00000370 0000044C 05 00000096 00000240 000002D0 03 000003E8 000005C1 00000731 04 00002EE0 00002945 00002EE0 01 00000014 00000000 00000014 02 00000000 00000000 00000000 Memory Type Information settings change. [Bds]Booting UEFI Misc Device InstallProtocolInterface: CE345171-BA0B-11D2-8E4F-00A0C969723B 22E060720 BlockSize : 262144 LastBlock : FF InstallProtocolInterface: CE345171-BA0B-11D2-8E4F-00A0C969723B 22E060720 [Bds] Expand VenHw(F9B94AE2-8BA6-409B-9D56-B9B417F53CB3) -> <null string> MemoryAttributesTable: Version - 0x00000001 NumberOfEntries - 0x0000001A DescriptorSize - 0x00000030 Entry (0x2E02C028) Type - 0x6 PhysicalStart - 0x000000022BC80000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2E02C058) Type - 0x5 PhysicalStart - 0x000000022BCD0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2E02C088) Type - 0x5 PhysicalStart - 0x000000022BCE0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2E02C0B8) Type - 0x5 PhysicalStart - 0x000000022BCF0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2E02C0E8) Type - 0x6 PhysicalStart - 0x000000022BD20000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2E02C118) Type - 0x5 PhysicalStart - 0x000000022BD70000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2E02C148) Type - 0x5 PhysicalStart - 0x000000022BD80000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2E02C178) Type - 0x5 PhysicalStart - 0x000000022BD90000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2E02C1A8) Type - 0x6 PhysicalStart - 0x000000022BDC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x00000000000000A0 Attribute - 0x8000000000004000 Entry (0x2E02C1D8) Type - 0x5 PhysicalStart - 0x000000022BE60000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2E02C208) Type - 0x5 PhysicalStart - 0x000000022BE70000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000020 Attribute - 0x8000000000020000 Entry (0x2E02C238) Type - 0x5 PhysicalStart - 0x000000022BE90000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2E02C268) Type - 0x6 PhysicalStart - 0x000000022BEC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x00000000000000F0 Attribute - 0x8000000000004000 Entry (0x2E02C298) Type - 0x5 PhysicalStart - 0x000000022BFB0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2E02C2C8) Type - 0x5 PhysicalStart - 0x000000022BFC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2E02C2F8) Type - 0x5 PhysicalStart - 0x000000022BFD0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2E02C328) Type - 0x6 PhysicalStart - 0x000000022C040000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000020 Attribute - 0x8000000000004000 Entry (0x2E02C358) Type - 0x5 PhysicalStart - 0x000000022C060000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2E02C388) Type - 0x5 PhysicalStart - 0x000000022C070000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2E02C3B8) Type - 0x5 PhysicalStart - 0x000000022C080000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000040 Attribute - 0x8000000000004000 Entry (0x2E02C3E8) Type - 0x5 PhysicalStart - 0x000000022C0C0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2E02C418) Type - 0x5 PhysicalStart - 0x000000022C0D0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2E02C448) Type - 0x5 PhysicalStart - 0x000000022F3E0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2E02C478) Type - 0x5 PhysicalStart - 0x000000022F430000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2E02C4A8) Type - 0x5 PhysicalStart - 0x000000022F440000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2E02C4D8) Type - 0x6 PhysicalStart - 0x000000022F480000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000120 Attribute - 0x8000000000004000 Memory Previous Current Next Type Pages Pages Pages ====== ======== ======== ======== 09 00000000 000000B0 000000DC 0A 00000000 00000020 00000028 00 00000000 00000000 00000000 06 0000012C 00000370 0000044C 05 00000096 00000240 000002D0 03 000003E8 000005C1 00000731 04 00002EE0 00003912 00004756 01 00000014 00000000 00000014 02 00000000 00000000 00000000 Memory Type Information settings change. [Bds]Booting UEFI Misc Device 2 BlockSize : 262144 LastBlock : FF [Bds] Expand VenHw(8047DB4B-7E9C-4C0C-8EBC-DFBBAACACE8F) -> <null string> MemoryAttributesTable: Version - 0x00000001 NumberOfEntries - 0x0000001A DescriptorSize - 0x00000030 Entry (0x2C807428) Type - 0x6 PhysicalStart - 0x000000022BC80000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2C807458) Type - 0x5 PhysicalStart - 0x000000022BCD0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807488) Type - 0x5 PhysicalStart - 0x000000022BCE0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8074B8) Type - 0x5 PhysicalStart - 0x000000022BCF0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C8074E8) Type - 0x6 PhysicalStart - 0x000000022BD20000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2C807518) Type - 0x5 PhysicalStart - 0x000000022BD70000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807548) Type - 0x5 PhysicalStart - 0x000000022BD80000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C807578) Type - 0x5 PhysicalStart - 0x000000022BD90000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C8075A8) Type - 0x6 PhysicalStart - 0x000000022BDC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x00000000000000A0 Attribute - 0x8000000000004000 Entry (0x2C8075D8) Type - 0x5 PhysicalStart - 0x000000022BE60000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807608) Type - 0x5 PhysicalStart - 0x000000022BE70000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000020 Attribute - 0x8000000000020000 Entry (0x2C807638) Type - 0x5 PhysicalStart - 0x000000022BE90000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C807668) Type - 0x6 PhysicalStart - 0x000000022BEC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x00000000000000F0 Attribute - 0x8000000000004000 Entry (0x2C807698) Type - 0x5 PhysicalStart - 0x000000022BFB0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C8076C8) Type - 0x5 PhysicalStart - 0x000000022BFC0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8076F8) Type - 0x5 PhysicalStart - 0x000000022BFD0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C807728) Type - 0x6 PhysicalStart - 0x000000022C040000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000020 Attribute - 0x8000000000004000 Entry (0x2C807758) Type - 0x5 PhysicalStart - 0x000000022C060000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000004000 Entry (0x2C807788) Type - 0x5 PhysicalStart - 0x000000022C070000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8077B8) Type - 0x5 PhysicalStart - 0x000000022C080000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000040 Attribute - 0x8000000000004000 Entry (0x2C8077E8) Type - 0x5 PhysicalStart - 0x000000022C0C0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C807818) Type - 0x5 PhysicalStart - 0x000000022C0D0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C807848) Type - 0x5 PhysicalStart - 0x000000022F3E0000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000050 Attribute - 0x8000000000004000 Entry (0x2C807878) Type - 0x5 PhysicalStart - 0x000000022F430000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000010 Attribute - 0x8000000000020000 Entry (0x2C8078A8) Type - 0x5 PhysicalStart - 0x000000022F440000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000030 Attribute - 0x8000000000004000 Entry (0x2C8078D8) Type - 0x6 PhysicalStart - 0x000000022F480000 VirtualStart - 0x0000000000000000 NumberOfPages - 0x0000000000000120 Attribute - 0x8000000000004000 Memory Previous Current Next Type Pages Pages Pages ====== ======== ======== ======== 09 00000000 000000B0 000000DC 0A 00000000 00000020 00000028 00 00000000 00000000 00000000 06 0000012C 00000370 0000044C 05 00000096 00000240 000002D0 03 000003E8 000005C1 00000731 04 00002EE0 00003912 00004756 01 00000014 00000000 00000014 02 00000000 00000000 00000000 Memory Type Information settings change. [Bds]Booting UEFI Misc Device 3 BlockSize : 512 LastBlock : 4FFFFFF Valid efi partition table header Valid efi partition table header Valid primary and Valid backup partition table Partition entries read block success Number of partition entries: 128 start check partition entries End check partition entries Index : 0 Start LBA : 800 End LBA : 1FF7FF Partition size: 1FF000 Start : 100000 End : 3FEFFE00 Index : 1 Start LBA : 1FF800 End LBA : 27FF7FF Partition size: 2600000 Start : 3FF00000 End : 4FFEFFE00 Prepare to Free Pool BlockSize : 512 LastBlock : 25FFFFF FSOpen: Open '\EFI\BOOT\BOOTAA64.EFI' Success [Bds] Expand PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0) -> PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0)/HD(1,GPT,542989C8-AE6A-44CB-B244-B17BBE5B631E,0x800,0x1FF000)/\EFI\BOOT\BOOTAA64.EFI [Security] 3rd party image[0] can be loaded after EndOfDxe: PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0)/HD(1,GPT,542989C8-AE6A-44CB-B244-B17BBE5B631E,0x800,0x1FF000)/\EFI\BOOT\BOOTAA64.EFI. InstallProtocolInterface: 5B1B31A1-9562-11D2-8E3F-00A0C969723B 22C80CD40 Loading driver at 0x0022B920000 EntryPoint=0x0022B921000 Loading driver at 0x0022B920000 EntryPoint=0x0022B921000 InstallProtocolInterface: BC62157E-3E33-4FEC-9920-2D3B36D750DF 22E115098 ProtectUefiImageCommon - 0x2C80CD40 - 0x000000022B920000 - 0x00000000000BF500 Section - '.text ' VirtualSize - 0x0008C000 VirtualAddress - 0x00001000 SizeOfRawData - 0x0008C000 PointerToRawData - 0x00001000 PointerToRelocations - 0x00000000 PointerToLinenumbers - 0x00000000 NumberOfRelocations - 0x00000000 NumberOfLinenumbers - 0x00000000 Characteristics - 0x60000020 ImageCode: 0x000000022B921000 - 0x000000000008C000 Section - '.data ' ImageCode SegmentCount - 0x1 SetUefiImageMemoryAttributes - 0x000000022B920000 - 0x0000000000001000 (0x0000000000004008) SetUefiImageMemoryAttributes - 0x000000022B921000 - 0x000000000008C000 (0x0000000000020008) SetUefiImageMemoryAttributes - 0x000000022B9AD000 - 0x0000000000033000 (0x0000000000004008) InstallProtocolInterface: 605DAB50-E046-4300-ABB6-3DD810DD8B23 22B9C06D8 FSOpen: Open '\EFI\BOOT\fbaa64.efi' Success FSOpen: Open '\EFI\BOOT\fbaa64.efi' Success [0m[37m[40mSystem BootOrder not found. Initializing defaults. FSOpen: Open 'EFI' Success FSOpen: Open 'anolis' Success FSOpen: Open 'BOOTAA64.CSV' Success FSOpen: Open '\EFI\anolis\BOOTAA64.CSV' Success Creating boot entry "Boot0008" with label "Red Hat Enterprise Linux" for file "\EFI\anolis\shimaa64.efi" FSOpen: Open '\EFI\anolis\shimaa64.efi' Success [Security] 3rd party image[0] can be loaded after EndOfDxe: PciRoot(0x0)/Pci(0x1,0x1)/Pci(0x0,0x0)/HD(1,GPT,542989C8-AE6A-44CB-B244-B17BBE5B631E,0x800,0x1FF000)/\EFI\anolis\shimaa64.efi. InstallProtocolInterface: 5B1B31A1-9562-11D2-8E3F-00A0C969723B 22E0184C0 Loading driver at 0x0022B7CD000 EntryPoint=0x0022B7CE000 Loading driver at 0x0022B7CD000 EntryPoint=0x0022B7CE000 InstallProtocolInterface: BC62157E-3E33-4FEC-9920-2D3B36D750DF 22C80BD18 ProtectUefiImageCommon - 0x2E0184C0 - 0x000000022B7CD000 - 0x00000000000BF500 Section - '.text ' VirtualSize - 0x0008C000 VirtualAddress - 0x00001000 SizeOfRawData - 0x0008C000 PointerToRawData - 0x00001000 PointerToRelocations - 0x00000000 PointerToLinenumbers - 0x00000000 NumberOfRelocations - 0x00000000 NumberOfLinenumbers - 0x00000000 Characteristics - 0x60000020 ImageCode: 0x000000022B7CE000 - 0x000000000008C000 Section - '.data ' ImageCode SegmentCount - 0x1 SetUefiImageMemoryAttributes - 0x000000022B7CD000 - 0x0000000000001000 (0x0000000000004008) SetUefiImageMemoryAttributes - 0x000000022B7CE000 - 0x000000000008C000 (0x0000000000020008) SetUefiImageMemoryAttributes - 0x000000022B85A000 - 0x0000000000033000 (0x0000000000004008) InstallProtocolInterface: 605DAB50-E046-4300-ABB6-3DD810DD8B23 22B86D6D8 FSOpen: Open '\EFI\anolis\grubaa64.efi' Success [0m[30m[40m[2J[01;01H[0m[37m[40m[21;07HUse the ^ and v keys to change the selection. Press 'e' to edit the selected item, or 'c' for a command prompt. [04;80H [0m[30m[47m[04;01H Anolis OS (4.19.91-24.8.an7.aarch64) 7.7 [0m[37m[40m[04;79H[05;01H Anolis OS (0-rescue-fd4527876a17488da47f3a2f9d0dd91c) 7.7 [05;79H[06;01H [06;79H[07;01H [07;79H[08;01H [08;79H[09;01H [09;79H[10;01H [10;79H[11;01H [11;79H[12;01H [12;79H[13;01H [13;79H[14;01H [14;79H[15;01H [15;79H[16;01H [16;79H[17;01H [17;79H[18;01H [18;79H[19;01H [19;79H[19;80H [04;79H[23;01H The selected entry will be started automatically in 5s. [04;79H[23;01H The selected entry will be started automatically in 4s. [04;79H[23;01H The selected entry will be started automatically in 3s. [04;79H[23;01H The selected entry will be started automatically in 2s. [04;79H[23;01H The selected entry will be started automatically in 1s. [04;79H[23;01H The selected entry will be started automatically in 0s. [04;79H[0m[30m[40m[2J[01;01H[0m[37m[40m[0m[30m[40m[2J[01;01H[0m[37m[40mVirtioNetExitBoot: Context=0x22E04F018 VirtioBlkExitBoot: Context=0x22E052B98 VirtioBlkExitBoot: Context=0x22E05F818 VirtioGpuExitBoot: Context=0x22E0E0018 SetUefiImageMemoryAttributes - 0x000000022F420000 - 0x0000000000040000 (0x0000000000000008) SetUefiImageMemoryAttributes - 0x000000022C0B0000 - 0x0000000000040000 (0x0000000000000008) SetUefiImageMemoryAttributes - 0x000000022C060000 - 0x0000000000040000 (0x0000000000000008) SetUefiImageMemoryAttributes - 0x000000022BFB0000 - 0x0000000000040000 (0x0000000000000008) SetUefiImageMemoryAttributes - 0x000000022BE60000 - 0x0000000000050000 (0x0000000000000008) SetUefiImageMemoryAttributes - 0x000000022BD70000 - 0x0000000000040000 (0x0000000000000008) SetUefiImageMemoryAttributes - 0x000000022BCD0000 - 0x0000000000040000 (0x0000000000000008) [ 1.466515] SDEI NMI watchdog: Disable SDEI NMI Watchdog in VM [ 1.467002] integrity: Unable to open file: /etc/keys/x509_ima.der (-2) [ 1.467003] integrity: Unable to open file: /etc/keys/x509_evm.der (-2) [[32m OK [0m] Started Show Plymouth Boot Screen. [[32m OK [0m] Reached target Paths. [[32m OK [0m] Started Forward Password Requests to Plymouth Directory Watch. [[32m OK [0m] Reached target Basic System. %G[[32m OK [0m] Found device /dev/disk/by-uuid/4c43cb58-7d78-48a4-883e-4bb7c1657df2. Starting File System Check on /dev/...8-7d78-48a4-883e-4bb7c1657df2... [[32m OK [0m] Started File System Check on /dev/d...b58-7d78-48a4-883e-4bb7c1657df2. %G[[32m OK [0m] Started dracut initqueue hook. [[32m OK [0m] Reached target Remote File Systems (Pre). [[32m OK [0m] Reached target Remote File Systems. Mounting /sysroot... [[32m OK [0m] Mounted /sysroot. [[32m OK [0m] Reached target Initrd Root File System. Starting Reload Configuration from the Real Root... [[32m OK [0m] Started Reload Configuration from the Real Root. [[32m OK [0m] Reached target Initrd File Systems. [[32m OK [0m] Reached target Initrd Default Target. Starting dracut pre-pivot and cleanup hook... [[32m OK [0m] Started dracut pre-pivot and cleanup hook. Starting Cleaning Up and Shutting Down Daemons... [[32m OK [0m] Stopped target Timers. Starting Plymouth switch root service... [[32m OK [0m] Stopped Cleaning Up and Shutting Down Daemons. [[32m OK [0m] Stopped dracut pre-pivot and cleanup hook. [[32m OK [0m] Stopped target Remote File Systems. [[32m OK [0m] Stopped target Remote File Systems (Pre). [[32m OK [0m] Stopped dracut initqueue hook. [[32m OK [0m] Stopped target Initrd Default Target. [[32m OK [0m] Stopped target Basic System. [[32m OK [0m] Stopped target System Initialization. Stopping udev Kernel Device Manager... [[32m OK [0m] Stopped udev Coldplug all Devices. [[32m OK [0m] Stopped target Local File Systems. [[32m OK [0m] Stopped target Swap. [[32m OK [0m] Stopped Apply Kernel Variables. [[32m OK [0m] Stopped target Sockets. [[32m OK [0m] Stopped target Paths. [[32m OK [0m] Stopped target Slices. [[32m OK [0m] Started Plymouth switch root service. [[32m OK [0m] Stopped udev Kernel Device Manager. [[32m OK [0m] Stopped Create Static Device Nodes in /dev. [[32m OK [0m] Stopped Create list of required sta...ce nodes for the current kernel. [[32m OK [0m] Stopped dracut pre-udev hook. [[32m OK [0m] Stopped dracut cmdline hook. [[32m OK [0m] Closed udev Control Socket. [[32m OK [0m] Closed udev Kernel Socket. Starting Cleanup udevd DB... [[32m OK [0m] Started Cleanup udevd DB. [[32m OK [0m] Reached target Switch Root. Starting Switch Root... Welcome to [0;31mAnolis OS 7.7[0m! [[32m OK [0m] Stopped Switch Root. [[32m OK [0m] Stopped Journal Service. Starting Journal Service... [[32m OK [0m] Set up automount Arbitrary Executab...ats File System Automount Point. [[32m OK [0m] Listening on udev Kernel Socket. [[32m OK [0m] Created slice Virtual Machine and Container Slice. [[32m OK [0m] Listening on /dev/initctl Compatibility Named Pipe. [[32m OK [0m] Reached target RPC Port Mapper. [[32m OK [0m] Created slice system-serial\x2dgetty.slice. [[32m OK [0m] Created slice system-selinux\x2dpol...grate\x2dlocal\x2dchanges.slice. Starting Apply Kernel Variables... Starting Remount Root and Kernel File Systems... [[32m OK [0m] Stopped target Switch Root. [[32m OK [0m] Stopped target Initrd File Systems. [[32m OK [0m] Stopped target Initrd Root File System. [[32m OK [0m] Reached target Swap. [[32m OK [0m] Listening on Delayed Shutdown Socket. [[32m OK [0m] Listening on udev Control Socket. Starting Create list of required st... nodes for the current kernel... [[32m OK [0m] Created slice system-getty.slice. Mounting POSIX Message Queue File System... [[32m OK [0m] Listening on Device-mapper event daemon FIFOs. [[32m OK [0m] Started Forward Password Requests to Wall Directory Watch. [[32m OK [0m] Reached target Paths. Mounting Debug File System... Mounting Huge Pages File System... [[32m OK [0m] Created slice User and Session Slice. [[32m OK [0m] Reached target Slices. [[32m OK [0m] Started Journal Service. [[32m OK [0m] Started Create list of required sta...ce nodes for the current kernel. Starting Create Static Device Nodes in /dev... [[32m OK [0m] Started Apply Kernel Variables. [[32m OK [0m] Mounted POSIX Message Queue File System. [[32m OK [0m] Mounted Debug File System. [[32m OK [0m] Started Remount Root and Kernel File Systems. [[32m OK [0m] Mounted Huge Pages File System. Starting Configure read-only root support... Starting Flush Journal to Persistent Storage... Starting udev Coldplug all Devices... [[32m OK [0m] Started udev Coldplug all Devices. Starting udev Wait for Complete Device Initialization... [[32m OK [0m] Started Create Static Device Nodes in /dev. Starting udev Kernel Device Manager... [[32m OK [0m] Reached target Local File Systems (Pre). [[32m OK [0m] Started Configure read-only root support. Starting Load/Save Random Seed... [[32m OK [0m] Started Load/Save Random Seed. [[32m OK [0m] Started udev Kernel Device Manager. [[32m OK [0m] Started Flush Journal to Persistent Storage. [[32m OK [0m] Found device /dev/ttyAMA0. [[32m OK [0m] Found device /dev/disk/by-uuid/7FBE-A0D6. Mounting /boot/efi... %G%G[[32m OK [0m] Mounted /boot/efi. [[32m OK [0m] Started udev Wait for Complete Device Initialization. Starting Activation of DM RAID sets... [[32m OK [0m] Started Activation of DM RAID sets. [[32m OK [0m] Reached target Local File Systems. Starting Preprocess NFS configuration... Starting Tell Plymouth To Write Out Runtime Data... Starting Import network configuration from initramfs... [[32m OK [0m] Reached target Local Encrypted Volumes. [[32m OK [0m] Started Preprocess NFS configuration. [[32m OK [0m] Started Import network configuration from initramfs. Starting Create Volatile Files and Directories... [[32m OK [0m] Started Tell Plymouth To Write Out Runtime Data. [[32m OK [0m] Started Create Volatile Files and Directories. Starting Update UTMP about System Boot/Shutdown... Mounting RPC Pipe File System... [[32m OK [0m] Started Update UTMP about System Boot/Shutdown. [[32m OK [0m] Reached target System Initialization. [[32m OK [0m] Listening on Open-iSCSI iscsid Socket. [[32m OK [0m] Started Daily Cleanup of Temporary Directories. [[32m OK [0m] Listening on Virtual machine lock manager socket. [[32m OK [0m] Listening on RPCbind Server Activation Socket. Starting RPC bind service... [[32m OK [0m] Listening on Open-iSCSI iscsiuio Socket. [[32m OK [0m] Listening on Virtual machine log manager socket. [[32m OK [0m] Listening on D-Bus System Message Bus Socket. [[32m OK [0m] Reached target Sockets. [[32m OK [0m] Reached target Basic System. Starting Self Monitoring and Reporting Technology (SMART) Daemon... Starting Virtual Machine and Container Registration Service... [[32m OK [0m] Started libstoragemgmt plug-in server daemon. Starting Initial cloud-init job (pre-networking)... [[32m OK [0m] Started ABRT Automated Bug Reporting Tool. [[32m OK [0m] Started ABRT kernel log watcher. Starting Install ABRT coredump hook... Starting Login Service... Starting GSSAPI Proxy Daemon... Starting Resets System Activity Logs... Starting Authorization Manager... Starting NTP client/server... [[32m OK [0m] Started Hardware RNG Entropy Gatherer Daemon. Starting Kernel Samepage Merging... [[32m OK [0m] Started D-Bus System Message Bus. [[32m OK [0m] Mounted RPC Pipe File System. [[32m OK [0m] Started Self Monitoring and Reporting Technology (SMART) Daemon. [[32m OK [0m] Started RPC bind service. [[32m OK [0m] Started GSSAPI Proxy Daemon. [[32m OK [0m] Started Resets System Activity Logs. [[32m OK [0m] Started Kernel Samepage Merging. [[32m OK [0m] Started Login Service. [[32m OK [0m] Started Virtual Machine and Container Registration Service. Starting Kernel Samepage Merging (KSM) Tuning Daemon... [[32m OK [0m] Reached target rpc_pipefs.target. [[32m OK [0m] Reached target NFS client services. [[32m OK [0m] Started NTP client/server. [[32m OK [0m] Started Kernel Samepage Merging (KSM) Tuning Daemon. Starting Wait for chrony to synchronize system clock... [[32m OK [0m] Started Authorization Manager. [[32m OK [0m] Started Install ABRT coredump hook. [ 5.213126] cloud-init[679]: Cloud-init v. 19.1.12-1.an7 running 'init-local' at Fri, 05 Nov 2021 09:50:29 +0000. Up 5.18 seconds. Starting Hostname Service... [[32m OK [0m] Started Hostname Service. [[32m OK [0m] Started Initial cloud-init job (pre-networking). [[32m OK [0m] Reached target Network (Pre). Starting Network Manager... Starting Initial cloud-init job (metadata service crawler)... [[32m OK [0m] Started Network Manager. Starting Network Manager Wait Online... Starting Network Manager Script Dispatcher Service... [[32m OK [0m] Started Network Manager Script Dispatcher Service. [ 6.855138] cloud-init[787]: Cloud-init v. 19.1.12-1.an7 running 'init' at Fri, 05 Nov 2021 09:50:30 +0000. Up 6.79 seconds. [ 6.863208] cloud-init[787]: ci-info: ++++++++++++++++++++++++++++++++++++Net device info++++++++++++++++++++++++++++++++++++ [ 6.865583] cloud-init[787]: ci-info: +--------+------+-----------------------------+-----------+-------+-------------------+ [ 6.865710] cloud-init[787]: ci-info: | Device | Up | Address | Mask | Scope | Hw-Address | [ 6.865815] cloud-init[787]: ci-info: +--------+------+-----------------------------+-----------+-------+-------------------+ [ 6.865916] cloud-init[787]: ci-info: | eth0 | True | fe80::216:3eff:fe08:4390/64 | . | link | 00:16:3e:08:43:90 | [ 6.866013] cloud-init[787]: ci-info: | lo | True | 127.0.0.1 | 255.0.0.0 | host | . | [ 6.866110] cloud-init[787]: ci-info: | lo | True | ::1/128 | . | host | . | [ 6.866207] cloud-init[787]: ci-info: +--------+------+-----------------------------+-----------+-------+-------------------+ [ 6.866304] cloud-init[787]: ci-info: +++++++++++++++++++Route IPv6 info+++++++++++++++++++ [ 6.866402] cloud-init[787]: ci-info: +-------+-------------+---------+-----------+-------+ [ 6.866499] cloud-init[787]: ci-info: | Route | Destination | Gateway | Interface | Flags | [ 6.866591] cloud-init[787]: ci-info: +-------+-------------+---------+-----------+-------+ [ 6.866686] cloud-init[787]: ci-info: | 0 | fe80::/64 | :: | eth0 | U | [ 6.866780] cloud-init[787]: ci-info: | 2 | ff00::/8 | :: | eth0 | U | [ 6.866873] cloud-init[787]: ci-info: +-------+-------------+---------+-----------+-------+ [[32m OK [0m] Started Network Manager Wait Online. Starting LSB: Bring up/down networking... [[32m OK [0m] Started LSB: Bring up/down networking. [[32m OK [0m] Reached target Network. Starting Dynamic System Tuning Daemon... Starting Logout off all iSCSI sessions on shutdown... [[32m OK [0m] Started Logout off all iSCSI sessions on shutdown. [[32m OK [0m] Reached target Remote File Systems (Pre). [[32m OK [0m] Reached target Remote File Systems. Starting Virtualization daemon... [[32m OK [0m] Started Virtualization daemon. [[32m OK [0m] Started Dynamic System Tuning Daemon. [ 9.063368] cloud-init[787]: Generating public/private rsa key pair. [ 9.063594] cloud-init[787]: Your identification has been saved in /etc/ssh/ssh_host_rsa_key. [ 9.063703] cloud-init[787]: Your public key has been saved in /etc/ssh/ssh_host_rsa_key.pub. [ 9.063805] cloud-init[787]: The key fingerprint is: [ 9.063903] cloud-init[787]: SHA256:ZalCvR5xO8srA+yVoUb95NA8FMTAgSx3e6becxrPZkY root@iZ2ze4s4xazmosfy8s6wh9Z [ 9.064018] cloud-init[787]: The key's randomart image is: [ 9.064121] cloud-init[787]: +---[RSA 2048]----+ [ 9.064217] cloud-init[787]: | . oo=o. | [ 9.064313] cloud-init[787]: | . +.o o. | [ 9.064407] cloud-init[787]: | o.oo== | [ 9.064500] cloud-init[787]: | .. =BB. | [ 9.064594] cloud-init[787]: | o..S@o. | [ 9.064687] cloud-init[787]: | =o+oooE | [ 9.064780] cloud-init[787]: | o +..+. | [ 9.064876] cloud-init[787]: | . + o== | [ 9.064970] cloud-init[787]: | ooBo | [ 9.065063] cloud-init[787]: +----[SHA256]-----+ [ 9.065157] cloud-init[787]: Generating public/private dsa key pair. [ 9.065250] cloud-init[787]: Your identification has been saved in /etc/ssh/ssh_host_dsa_key. [ 9.065343] cloud-init[787]: Your public key has been saved in /etc/ssh/ssh_host_dsa_key.pub. [ 9.065436] cloud-init[787]: The key fingerprint is: [ 9.065527] cloud-init[787]: SHA256:JuhMWJOo1RFkPc2GUpeTsxqJD5G+k6cjGqcIUe3Yd9w root@iZ2ze4s4xazmosfy8s6wh9Z [ 9.065632] cloud-init[787]: The key's randomart image is: [ 9.065728] cloud-init[787]: +---[DSA 1024]----+ [ 9.065823] cloud-init[787]: | .==.+.o | [ 9.065916] cloud-init[787]: | =+o+.O | [ 9.066008] cloud-init[787]: | +.*+ + + | [ 9.066098] cloud-init[787]: | + *+oo... | [ 9.066187] cloud-init[787]: |o o ==ooS E | [ 9.066276] cloud-init[787]: | . ++.++ | [ 9.066364] cloud-init[787]: |o . o+ | [ 9.066454] cloud-init[787]: |o+. o | [ 9.066542] cloud-init[787]: |+. . . | [ 9.066633] cloud-init[787]: +----[SHA256]-----+ [ 9.066721] cloud-init[787]: Generating public/private ecdsa key pair. [ 9.066811] cloud-init[787]: Your identification has been saved in /etc/ssh/ssh_host_ecdsa_key. [ 9.066901] cloud-init[787]: Your public key has been saved in /etc/ssh/ssh_host_ecdsa_key.pub. [ 9.066988] cloud-init[787]: The key fingerprint is: [ 9.067075] cloud-init[787]: SHA256:WlRVDNg7dXWnEIp68ev5IYQeS6Gg+FpJS5G5arh1J/A root@iZ2ze4s4xazmosfy8s6wh9Z [ 9.067163] cloud-init[787]: The key's randomart image is: [ 9.067250] cloud-init[787]: +---[ECDSA 256]---+ [ 9.067339] cloud-init[787]: | .+==. =| [ 9.067428] cloud-init[787]: | o o....o.+| [ 9.067517] cloud-init[787]: | + . = . o.. | [ 9.067605] cloud-init[787]: | . + . + = o | [ 9.067694] cloud-init[787]: |. * o S o . | [ 9.067783] cloud-init[787]: |.= = * + . | [ 9.067869] cloud-init[787]: |o.* E o o o . | [ 9.067958] cloud-init[787]: |.= . o . o . | [ 9.068061] cloud-init[787]: |o o.. | [ 9.068154] cloud-init[787]: +----[SHA256]-----+ [ 9.068241] cloud-init[787]: Generating public/private ed25519 key pair. [ 9.068334] cloud-init[787]: Your identification has been saved in /etc/ssh/ssh_host_ed25519_key. [ 9.068423] cloud-init[787]: Your public key has been saved in /etc/ssh/ssh_host_ed25519_key.pub. [ 9.068512] cloud-init[787]: The key fingerprint is: [ 9.068598] cloud-init[787]: SHA256:Ruo182u8hsSCiH/TAnX7F57d88Zs8ZfNmx/+i5WuWkA root@iZ2ze4s4xazmosfy8s6wh9Z [ 9.068687] cloud-init[787]: The key's randomart image is: [ 9.068774] cloud-init[787]: +--[ED25519 256]--+ [ 9.068863] cloud-init[787]: | | [ 9.068954] cloud-init[787]: | | [ 9.069040] cloud-init[787]: | . E | [ 9.069128] cloud-init[787]: | . .o . | [ 9.069217] cloud-init[787]: | . o o.oS . | [ 9.069306] cloud-init[787]: |. o ..ooo+. . ..| [ 9.069403] cloud-init[787]: | . . ..+ +.+ o B=| [ 9.069495] cloud-init[787]: | . + . o B.o B.%| [ 9.069590] cloud-init[787]: | . o +oo.o.@X| [ 9.069682] cloud-init[787]: +----[SHA256]-----+ [[32m OK [0m] Started Initial cloud-init job (metadata service crawler). Starting OpenSSH server daemon... Starting Permit User Sessions... [[32m OK [0m] Reached target Cloud-config availability. [[32m OK [0m] Reached target Network is Online. Starting System Logging Service... Starting LSB: start and stop ecs_mq_rps_rfs... Starting Apply the settings specified in cloud-config... [[32m OK [0m] Started 阿里云助手. Starting Notify NFS peers of a restart... Starting LSB: aegis update.... Starting Crash recovery kernel arming... [[32m OK [0m] Started Permit User Sessions. [[32m OK [0m] Started OpenSSH server daemon. [[32m OK [0m] Started Job spooling tools. Starting Wait for Plymouth Boot Screen to Quit... Starting Terminate Plymouth Boot Screen... [[32m OK [0m] Started Notify NFS peers of a restart. [[32m OK [0m] Started System Logging Service. [ 9.354894] cloud-init[1446]: Cloud-init v. 19.1.12-1.an7 running 'modules:config' at Fri, 05 Nov 2021 09:50:33 +0000. Up 9.30 seconds. [ 9.691839] cloud-init[1641]: Cloud-init v. 19.1.12-1.an7 running 'modules:final' at Fri, 05 Nov 2021 09:50:33 +0000. Up 9.63 seconds. ci-info: no authorized ssh keys fingerprints found for user root. [ 9.715863] cloud-init[1641]: ci-info: no authorized ssh keys fingerprints found for user root. ec2: ec2: ############################################################# ec2: -----BEGIN SSH HOST KEY FINGERPRINTS----- ec2: 1024 SHA256:JuhMWJOo1RFkPc2GUpeTsxqJD5G+k6cjGqcIUe3Yd9w root@iZ2ze4s4xazmosfy8s6wh9Z (DSA) ec2: 256 SHA256:WlRVDNg7dXWnEIp68ev5IYQeS6Gg+FpJS5G5arh1J/A root@iZ2ze4s4xazmosfy8s6wh9Z (ECDSA) ec2: 256 SHA256:Ruo182u8hsSCiH/TAnX7F57d88Zs8ZfNmx/+i5WuWkA root@iZ2ze4s4xazmosfy8s6wh9Z (ED25519) ec2: 2048 SHA256:ZalCvR5xO8srA+yVoUb95NA8FMTAgSx3e6becxrPZkY root@iZ2ze4s4xazmosfy8s6wh9Z (RSA) ec2: -----END SSH HOST KEY FINGERPRINTS----- ec2: ############################################################# -----BEGIN SSH HOST KEY KEYS----- ecdsa-sha2-nistp256 AAAAE2VjZHNhLXNoYTItbmlzdHAyNTYAAAAIbmlzdHAyNTYAAABBBOOr6bqAQvvitaHCJ+19zjOBXUes5KnskLfSX6PlTxOF//hUTnEIldqNLphs9/Fk5AxrA3Tan/oS/11Mwr+gxvM= root@iZ2ze4s4xazmosfy8s6wh9Z ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIJTwZyqGm7+QxqXhRnQoCrMxNbaxNsLcl7iSgIxF817+ root@iZ2ze4s4xazmosfy8s6wh9Z ssh-rsa AAAAB3NzaC1yc2EAAAADAQABAAABAQC/Dk2jVuT21gzaGlFZ/driUXfCqnDc97P/KzbL8j3U7PwDNJBg5waPl26uqBBR9osMvq6Ujdj1VL+S92GeOpv8x8eMKbXU/9/kQNn4Y/9whanOC+uyLBc0UHPw0J5k3aJG2yzD25oXjfRTJxStwAvbKfWdLK2RAhC+XfdFCGJQLJ7zOkO8ditHIhG919H3xB2COJsVj78w9WfPR6a3ztg4g0wZ3DJux2Yhgu8iV94VsHydYr8saXKklpHGjYymaPfC+zposTOMs8EcByEqrrBKg2wxYpPF8AlTfRgP7UWymJW4s+FnXSBcvgUjHfHyUuORDITVL4SPczcYbR1jFhtZ root@iZ2ze4s4xazmosfy8s6wh9Z -----END SSH HOST KEY KEYS----- [ 9.780693] cloud-init[1641]: Cloud-init v. 19.1.12-1.an7 finished at Fri, 05 Nov 2021 09:50:33 +0000. Datasource DataSourceAliYun2Local. Up 9.76 seconds Anolis OS 7.7 Kernel 4.19.91-24.8.an7.aarch64 on an aarch64 iZ2ze4s4xazmosfy8s6wh9Z login: [ 885.492846] sysrq: SysRq : Trigger a crash [ 885.493481] Unable to handle kernel NULL pointer dereference at virtual address 0000000000000000 [ 885.494029] Mem abort info: [ 885.494200] ESR = 0x96000046 [ 885.494400] Exception class = DABT (current EL), IL = 32 bits [ 885.494755] SET = 0, FnV = 0 [ 885.494941] EA = 0, S1PTW = 0 [ 885.495132] Data abort info: [ 885.495309] ISV = 0, ISS = 0x00000046 [ 885.495539] CM = 0, WnR = 1 [ 885.495721] user pgtable: 4k pages, 48-bit VAs, pgdp = 00000000efb3649b [ 885.496112] [0000000000000000] pgd=000000022d6d5003, pud=00000001c5849003, pmd=0000000000000000 [ 885.496622] Internal error: Oops: 96000046 [#1] SMP [ 885.496928] Modules linked in: xt_CHECKSUM iptable_mangle ipt_MASQUERADE iptable_nat nf_nat_ipv4 nf_nat xt_conntrack nf_conntrack nf_defrag_ipv6 nf_defrag_ipv4 libcrc32c ipt_REJECT nf_reject_ipv4 tun bridge stp llc ebtable_filter ebtables devlink ip6table_filter ip6_tables iptable_filter sunrpc dm_mirror dm_region_hash dm_log dm_mod aes_ce_blk crypto_simd cryptd vfat aes_ce_cipher fat crc32_ce crct10dif_ce ghash_ce ofpart sha2_ce mousedev cmdlinepart sha256_arm64 sha1_ce cfi_cmdset_0001 virtio_input cfi_probe cfi_util virtio_balloon gen_probe physmap_of chipreg mtd uio_pdrv_genirq uio ip_tables virtio_gpu drm_kms_helper syscopyarea sysfillrect sysimgblt fb_sys_fops ttm drm virtio_net i2c_core net_failover failover virtio_blk virtio_console virtio_pci [ 885.500983] Process os_base_test.sh (pid: 2376, stack limit = 0x0000000066e099a5) [ 885.501455] CPU: 1 PID: 2376 Comm: os_base_test.sh Kdump: loaded Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 885.502047] Hardware name: Alibaba Cloud Alibaba Cloud ECS, BIOS 0.0.0 02/06/2015 [ 885.502507] pstate: 40400005 (nZcv daif +PAN -UAO) [ 885.502813] pc : sysrq_handle_crash+0x1c/0x28 [ 885.503089] lr : __handle_sysrq+0x88/0x170 [ 885.503347] sp : ffff000010ae3d50 [ 885.503557] x29: ffff000010ae3d50 x28: ffff8001e2ec7000 [ 885.503892] x27: 0000000000000000 x26: 0000000000000000 [ 885.504227] x25: 0000000056000000 x24: 0000000000000015 [ 885.504563] x23: ffff0000092b19b0 x22: 0000000000000000 [ 885.504893] x21: 0000000000000004 x20: ffff000009223000 [ 885.505222] x19: 0000000000000063 x18: 0000000000000010 [ 885.505574] x17: 0000000000000000 x16: 0000000000000000 [ 885.505907] x15: 0000000000aaaaaa x14: 0000000000000020 [ 885.506240] x13: 00000000ffffffff x12: ffff000000b560a0 [ 885.506574] x11: 0000000000000001 x10: 0000000000000008 [ 885.506907] x9 : ffff00000866d400 x8 : 00000000000004cd [ 885.507243] x7 : 0000000000000300 x6 : 0000000000000400 [ 885.507573] x5 : 0000000000000001 x4 : ffff8001eff685d0 [ 885.507905] x3 : ffff8001eff71308 x2 : e8fab88263751b00 [ 885.508238] x1 : 0000000000000000 x0 : 0000000000000001 [ 885.508570] Call trace: [ 885.508730] sysrq_handle_crash+0x1c/0x28 [ 885.508985] write_sysrq_trigger+0x6c/0x88 [ 885.509741] proc_reg_write+0x74/0xb0 [ 885.510459] __vfs_write+0x20/0x48 [ 885.511157] vfs_write+0xac/0x1b8 [ 885.511850] ksys_write+0x68/0xe0 [ 885.512528] __arm64_sys_write+0x20/0x28 [ 885.513232] el0_svc_common.constprop.0+0x80/0x1f8 [ 885.513998] el0_svc_handler+0x30/0x80 [ 885.514686] el0_svc+0x10/0x14 [ 885.515328] Code: 52800020 b9020820 d5033e9f d2800001 (39000020) [ 885.516153] ---[ end trace e4341fb65d756cba ]--- [ 885.516901] Kernel panic - not syncing: Fatal exception [ 885.517683] SMP: stopping secondary CPUs [ 885.518406] Kernel Offset: disabled [ 885.519091] CPU features: 0x1c,2a202238 [ 885.519779] Memory Limit: none [ 885.521264] Starting crashdump kernel... [ 885.521953] Bye! [ 2.344299] SDEI NMI watchdog: Disable SDEI NMI Watchdog in VM [ 2.344792] integrity: Unable to open file: /etc/keys/x509_ima.der (-2) [ 2.344793] integrity: Unable to open file: /etc/keys/x509_evm.der (-2) [ 242.656784] INFO: task systemd-udevd:254 blocked for more than 120 seconds. [ 242.657539] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 242.657874] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [[1;31m TIME [0m] Timed out waiting for device dev-di...\x2d883e\x2d4bb7c1657df2.device. [[1;33mDEPEND[0m] Dependency failed for /sysroot. [[1;33mDEPEND[0m] Dependency failed for Local File Systems. [[1;33mDEPEND[0m] Dependency failed for File System C...b58-7d78-48a4-883e-4bb7c1657df2. Starting Setup Virtual Console... Starting Kdump Emergency... [[32m OK [0m] Stopped dracut initqueue hook. Starting Cleaning Up and Shutting Down Daemons... [[1;31mFAILED[0m] Failed to start Cleaning Up and Shutting Down Daemons. See 'systemctl status initrd-cleanup.service' for details. [[32m OK [0m] Started Setup Virtual Console. Stopping udev Kernel Device Manager... [[32m OK [0m] Stopped target Remote File Systems. [[32m OK [0m] Stopped target Paths. [[32m OK [0m] Stopped udev Coldplug all Devices. [[32m OK [0m] Stopped target Timers. [[32m OK [0m] Stopped target Remote File Systems (Pre). [[32m OK [0m] Stopped target Swap. [[32m OK [0m] Stopped target Slices. [[32m OK [0m] Stopped target Initrd Root File System. [[32m OK [0m] Stopped target Initrd File Systems. Starting Kdump Error Handler... [[32m OK [0m] Stopped target Sockets. [[32m OK [0m] Stopped Apply Kernel Variables. [[32m OK [0m] Stopped Dispatch Password Requests to Console Directory Watch. Stopping Journal Service... [[32m OK [0m] Stopped Journal Service. Kdump: Executing default action systemctl reboot -f Failed to execute operation: Connection reset by peer [ 332.575919] systemd-udevd[251]: timeout, giving up waiting for workers to finish [ 332.594621] systemd-shutdown[1]: Syncing filesystems and block devices - timed out, issuing SIGKILL to PID 324. [ 363.488784] INFO: task systemd-udevd:254 blocked for more than 120 seconds. [ 363.489346] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 363.489676] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 382.611268] systemd-shutdown[1]: Syncing filesystems and block devices - timed out, issuing SIGKILL to PID 327. [ 484.320783] INFO: task systemd-udevd:254 blocked for more than 120 seconds. [ 484.321550] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 484.321886] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 484.322413] INFO: task systemd-shutdow:324 blocked for more than 120 seconds. [ 484.322843] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 484.323171] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 484.323657] INFO: task systemd-shutdow:327 blocked for more than 120 seconds. [ 484.324086] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 484.324413] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 605.152770] INFO: task systemd-shutdow:1 blocked for more than 120 seconds. [ 605.153490] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 605.153825] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 605.154328] INFO: task systemd-udevd:254 blocked for more than 120 seconds. [ 605.154748] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 605.155074] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 605.155586] INFO: task systemd-shutdow:324 blocked for more than 120 seconds. [ 605.156016] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 605.156350] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 605.156843] INFO: task systemd-shutdow:327 blocked for more than 120 seconds. [ 605.157274] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 605.157601] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. [ 725.984768] INFO: task systemd-shutdow:1 blocked for more than 120 seconds. [ 725.985490] Not tainted 4.19.91-24.8.an7.aarch64 #1 [ 725.985823] "echo 0 > /proc/sys/kernel/hung_task_timeout_secs" disables this message. |
|
建议发布 crash-7.2.8 及以上版本来修复该问题。 |
|
关于设置crashkernel=256M ,crash 后导致系统不能正常启动, 建议参考 alinux2 的 kexec-tools ,发布 kexec-tools-2.0.15-51.1.al7.3.alnx.aarch64 来修复该问题 |
|

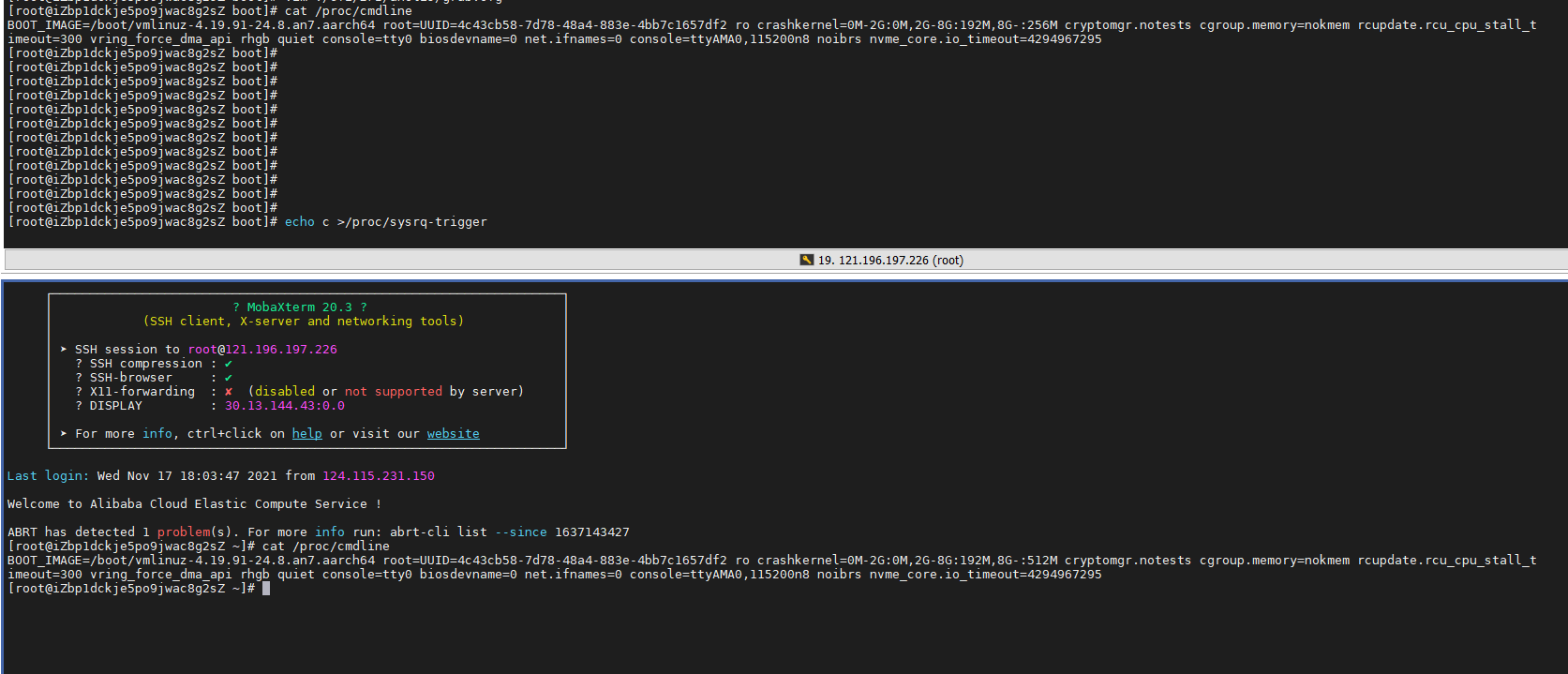

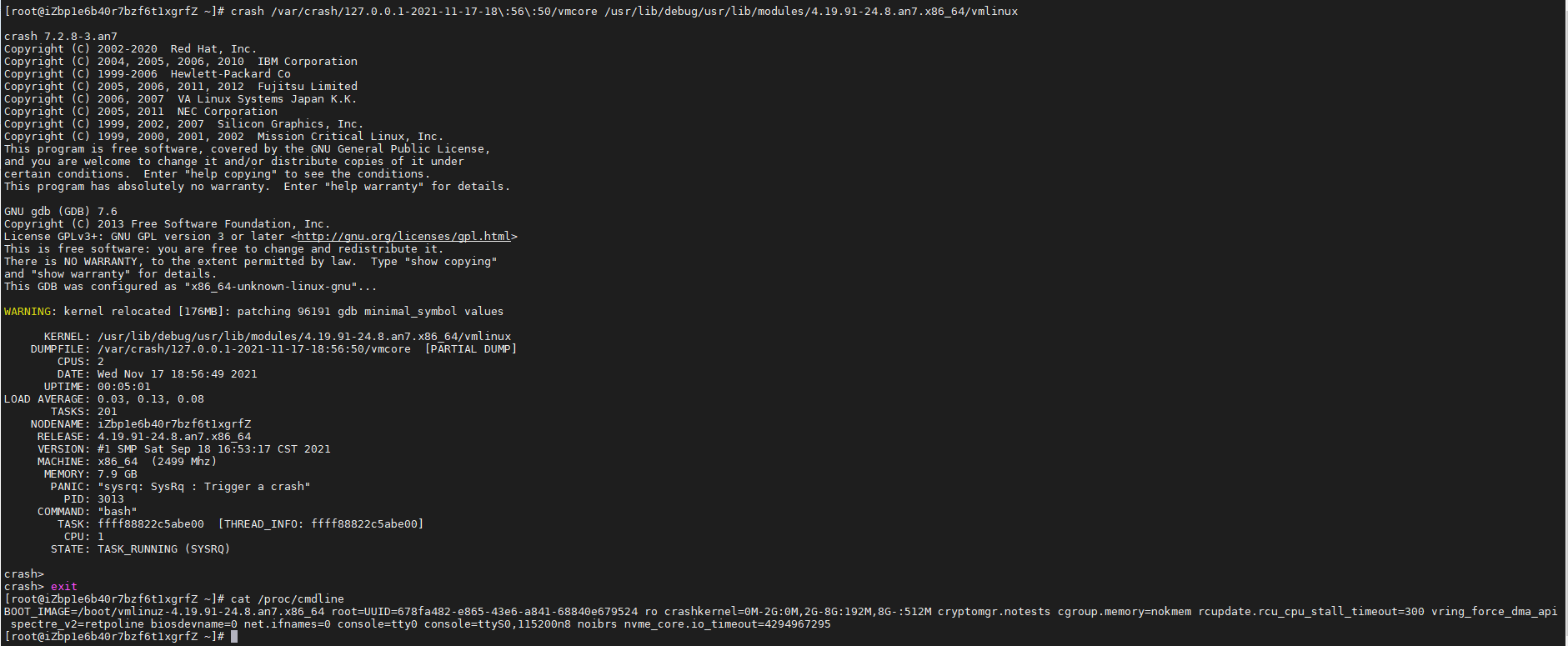

实例镜像: anolisos_7_7_x64_20G_anck_alibase_20211105.vhd anolisos_7_7_arm64_20G_anck_alibase_20211105.vhd 实例规格: x86_64 ecs.g6.large aarch64 ecs.g6r.large 解决方案: 更新发布高版本软件包: crash-7.2.8-3.an7 kexec-tools-2.0.15-51.1.an7.3 验证流程: 1. 安装新版本crash与kexec-tools软件包 2. systemctl restart kdump 3. 手动配置yum源并安装配套的kernel-debuginfo和kernel-debuginfo-common包 4. 通过grub2.cfg文件进而修改crashkernel为512M 5. echo c >/proc/sysrq-trigger触发异常 6. 待重新连接后,通过crash对vmcore进行解析且解析正常 验证结果见图 |
日期 | 用户名 | 字段 | 更改 |
---|---|---|---|
2021-11-08 14:06 | yinyongchen | 新建问题 | |
2021-11-08 14:06 | yinyongchen | 添加了以下文件:: long_text_2021-11-08-10-15-31.txt | |
2021-11-08 14:43 | yinyongchen | 标题 | [Anolis 7.7-anck-aarch64][云上ECS] 20211105镜像安装后设置crashkernel=256M,echo c >/proc/sysrq-trigger,系统不能正常启动,设置512M时crash文件不能正常解析 => [Anolis 7.7-anck-aarch64][vhd][ECS] 20211105镜像安装后设置crashkernel=256M,echo c >/proc/sysrq-trigger,系统不能正常启动,设置512M时crash文件不能正常解析 |
2021-11-08 14:43 | yinyongchen | 描述已修改 | |
2021-11-08 14:43 | yinyongchen | 问题重现步骤已修改 | |
2021-11-08 15:43 | yinyongchen | 描述已修改 | |
2021-11-16 19:55 | yunqi-zwt | 分派给 | => yunqi-zwt |
2021-11-16 19:55 | yunqi-zwt | 状态 | 新建 => 已分配 |
2021-11-16 22:24 | yunqi-zwt | 注释已添加: 0000720 | |
2021-11-16 22:24 | yunqi-zwt | 添加了以下文件:: image.png | |
2021-11-16 22:42 | yunqi-zwt | 注释已添加: 0000722 | |
2021-11-16 22:42 | yunqi-zwt | 添加了以下文件:: image-2.png | |
2021-11-16 22:42 | yunqi-zwt | 注释已编辑: 0000722 | |
2021-11-17 19:17 | wb-zh951434 | 注释已添加: 0000744 | |
2021-11-17 19:17 | wb-zh951434 | 添加了以下文件:: image-3.png | |
2021-11-17 19:17 | wb-zh951434 | 添加了以下文件:: image-4.png | |
2021-11-17 19:17 | wb-zh951434 | 添加了以下文件:: image-5.png | |
2021-11-17 19:21 | wb-zh951434 | 状态 | 已分配 => 已解决 |
