编号 | 项目 | 分类 | 查看权限 | 报告日期 | 最后更新 |
---|---|---|---|---|---|
0000486 | Anolis OS 7 | General | public | 2021-11-08 11:48 | 2021-11-18 14:36 |
报告员 | wb-wpp899309 | 分派给 | yunqi-zwt | ||
优先级 | normal | 严重性 | minor | 出现频率 | always |
状态 | resolved | 处理状况 | open | ||
平台 | x86_64 | 操作系统 | Anolis OS | 操作系统版本 | 7 |
标题 | 0000486: [Anolis OS 7.7] [x86_64]crashkernel为默认配置,生成的vmcore通过crash工具无法正常解析 | ||||
描述 | [缺陷描述]: crashkernel=0M-2G:0M,2G-8G:192M,8G-:256M为默认配置,触发异常,可正常生成vmcore,但无法通过crash工具正常解析vmcore; kdump实际预留内存为192M: 29000000-34ffffff : Crash kernel crash、kexec-tools版本: # rpm -qa |grep -E "crash|kexec-tools" kexec-tools-2.0.15-33.an7.x86_64 crash-7.2.3-10.an7.x86_64 1、解析有报错 镜像:anolisos_7_7_x64_20G_anck_alibase_20211105.vhd 实例:ecs.g7a.large、ecs.d2s.5xlarge 详细错误日志如下: # crash vmcore /usr/lib/debug/usr/lib/modules/4.19.91-24.8.an7.x86_64/vmlinux crash 7.2.3-10.an7 Copyright (C) 2002-2017 Red Hat, Inc. Copyright (C) 2004, 2005, 2006, 2010 IBM Corporation Copyright (C) 1999-2006 Hewlett-Packard Co Copyright (C) 2005, 2006, 2011, 2012 Fujitsu Limited Copyright (C) 2006, 2007 VA Linux Systems Japan K.K. Copyright (C) 2005, 2011 NEC Corporation Copyright (C) 1999, 2002, 2007 Silicon Graphics, Inc. Copyright (C) 1999, 2000, 2001, 2002 Mission Critical Linux, Inc. This program is free software, covered by the GNU General Public License, and you are welcome to change it and/or distribute copies of it under certain conditions. Enter "help copying" to see the conditions. This program has absolutely no warranty. Enter "help warranty" for details. GNU gdb (GDB) 7.6 Copyright (C) 2013 Free Software Foundation, Inc. License GPLv3+: GNU GPL version 3 or later <http://gnu.org/licenses/gpl.html> This is free software: you are free to change and redistribute it. There is NO WARRANTY, to the extent permitted by law. Type "show copying" and "show warranty" for details. This GDB was configured as "x86_64-unknown-linux-gnu"... WARNING: kernel relocated [512MB]: patching 96191 gdb minimal_symbol values please wait... (gathering module symbol data) crash: invalid size request: -1067897492 type: "module gpl symbol strings" buf_1K_used: 468 buf_2K_used: 1 buf_4K_used: 1 buf_8K_used: 0 buf_32K_used: 5 buf_1K_ovf: 0 buf_2K_ovf: 0 buf_4K_ovf: 0 buf_8K_ovf: 0 buf_32K_ovf: 0 buf_1K_maxuse: 3 of 10 buf_2K_maxuse: 1 of 10 buf_4K_maxuse: 1 of 5 buf_8K_maxuse: 0 of 5 buf_32K_maxuse: 1 of 1 buf_inuse[5]: [3][0][0][0][0] smallest: -1067897492 largest: 1769526533884 embedded: 3 max_embedded: 3 mallocs: 0 frees: 0 reqs/total: 476/1768458861196 average size: 3715249708 crash: cannot allocate any more memory! 2、输入解析命令无反应 crash vmcore vmlinux 镜像:anolisos_7_7_x64_20G_anck_alibase_20211105.vhd 实例:ecs.g7a.32xlarge、ecs.d1.2xlarge # crash vmcore /usr/lib/debug/usr/lib/modules/4.19.91-24.8.an7.x86_64/vmlinux [重现概率] 必现 [重现环境] 内核: # uname -r 4.19.91-24.8.an7.x86_64 # cat /etc/os-release NAME="Anolis OS" VERSION="7.7" ID="anolis" ID_LIKE="rhel fedora centos" VERSION_ID="7.7" PRETTY_NAME="Anolis OS 7.7" ANSI_COLOR="0;31" HOME_URL="https://openanolis.cn/" BUG_REPORT_URL="https://bugs.openanolis.cn/" CENTOS_MANTISBT_PROJECT="CentOS-7" CENTOS_MANTISBT_PROJECT_VERSION="7" REDHAT_SUPPORT_PRODUCT="centos" REDHAT_SUPPORT_PRODUCT_VERSION="7" 内存: # free -h total used free shared buff/cache available Mem: 7.4G 196M 4.0G 584K 3.2G 6.9G Swap: 0B 0B 0B # lscpu Architecture: x86_64 CPU op-mode(s): 32-bit, 64-bit Byte Order: Little Endian CPU(s): 2 On-line CPU(s) list: 0,1 Thread(s) per core: 2 Core(s) per socket: 1 Socket(s): 1 NUMA node(s): 1 Vendor ID: AuthenticAMD CPU family: 25 Model: 1 Model name: AMD EPYC 7T83 64-Core Processor Stepping: 1 CPU MHz: 2545.216 BogoMIPS: 5090.43 Hypervisor vendor: KVM Virtualization type: full L1d cache: 32K L1i cache: 32K L2 cache: 512K L3 cache: 32768K NUMA node0 CPU(s): 0,1 Flags: fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush mmx fxsr sse sse2 ht syscall nx mmxext fxsr_opt pdpe1gb rdtscp lm constant_tsc rep_good nopl nonstop_tsc cpuid extd_apicid tsc_known_freq pni pclmulqdq monitor ssse3 fma cx16 pcid sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand hypervisor lahf_lm cmp_legacy cr8_legacy abm sse4a misalignsse 3dnowprefetch osvw topoext invpcid_single vmmcall tsc_adjust bmi1 avx2 smep bmi2 erms invpcid rdseed adx smap clflushopt clwb sha_ni xsaveopt xsavec xgetbv1 xsaves clzero xsaveerptr rdpru wbnoinvd arat vaes vpclmulqdq rdpid fsrm [期望结果]: 触发异常后echo c >/proc/sysrq-trigger,系统可正常生成vmcore,并且通过crash工具能正常解析 [实际结果]: 触发异常后echo c >/proc/sysrq-trigger,系统可正常生成vmcore,crash工具无法正常解析vmcore | ||||
问题重现步骤 | 1、安装依赖包 yum -y install crash kexec-tools systemctl restart kdump 需要安装配套的kernel-debuginfo和kernel-debuginfo-common包 手动配置yum源安装 [plus-debug] name=plus-debug baseurl=http://mirrors.openanolis.cn/anolis/7.7/Plus/x86_64/debug/ enabled=1 yum install kernel-debuginfo 2、触发异常 echo c >/proc/sysrq-trigger 3、检查系统是否正常启动,是否有vmcor生成,crash解析vmcore是否正常 | ||||
标签 | 没加标签. | ||||
|
镜像:anolisos_7_7_x64_20G_anck_alibase_20211105.vhd 实例:ecs.g6.large,ecs.g6.26xlarge,ecs.g6a.large,ecs.g6a.32xlarge,ecs.g7.large,ecs.g7.32xlarge 存在相同问题 |
|
镜像:anolisos_7_7_x64_20G_anck_alibase_20211105.vhd 实例规格:ecs.i1.xlarge、ecs.i2.xlarge、ecs.ebmg6.26xlarge、ecs.ebmhfg7.48xlarge也存在相同问题:crash无法解析vmcore。 |
|
建议发布 crash-7.2.8 来修复该问题 |
|

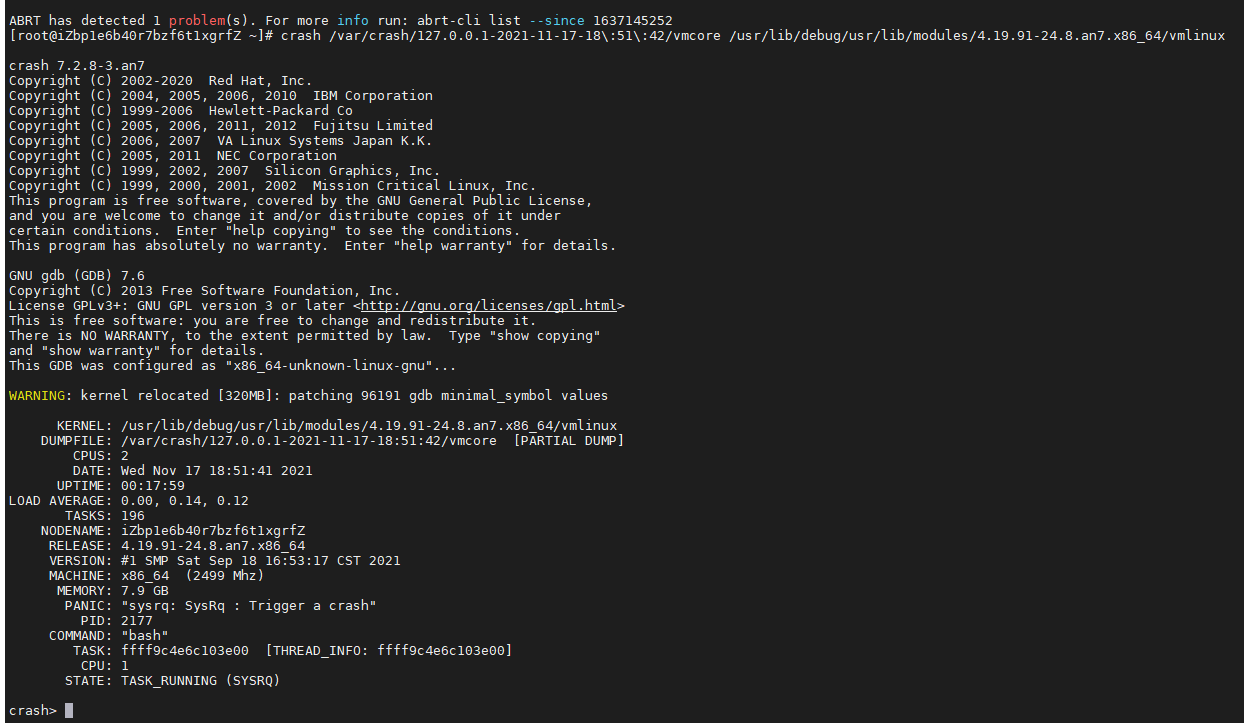

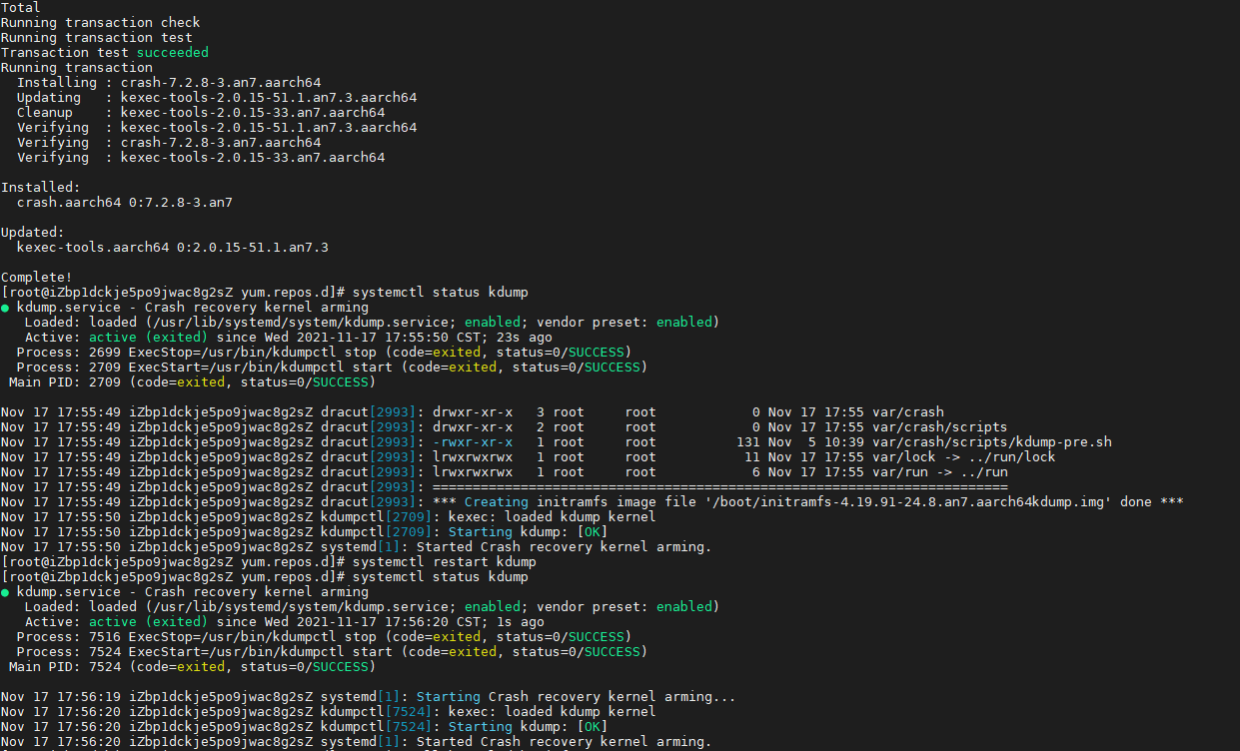

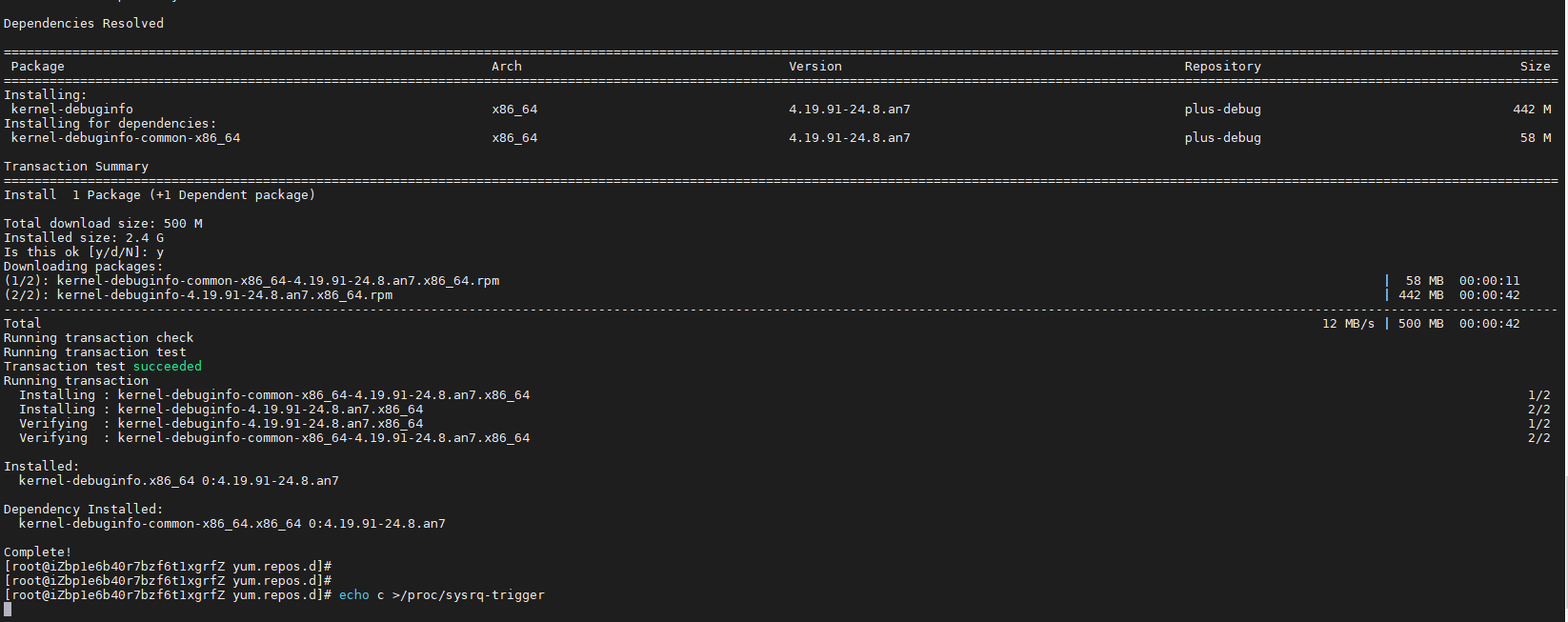

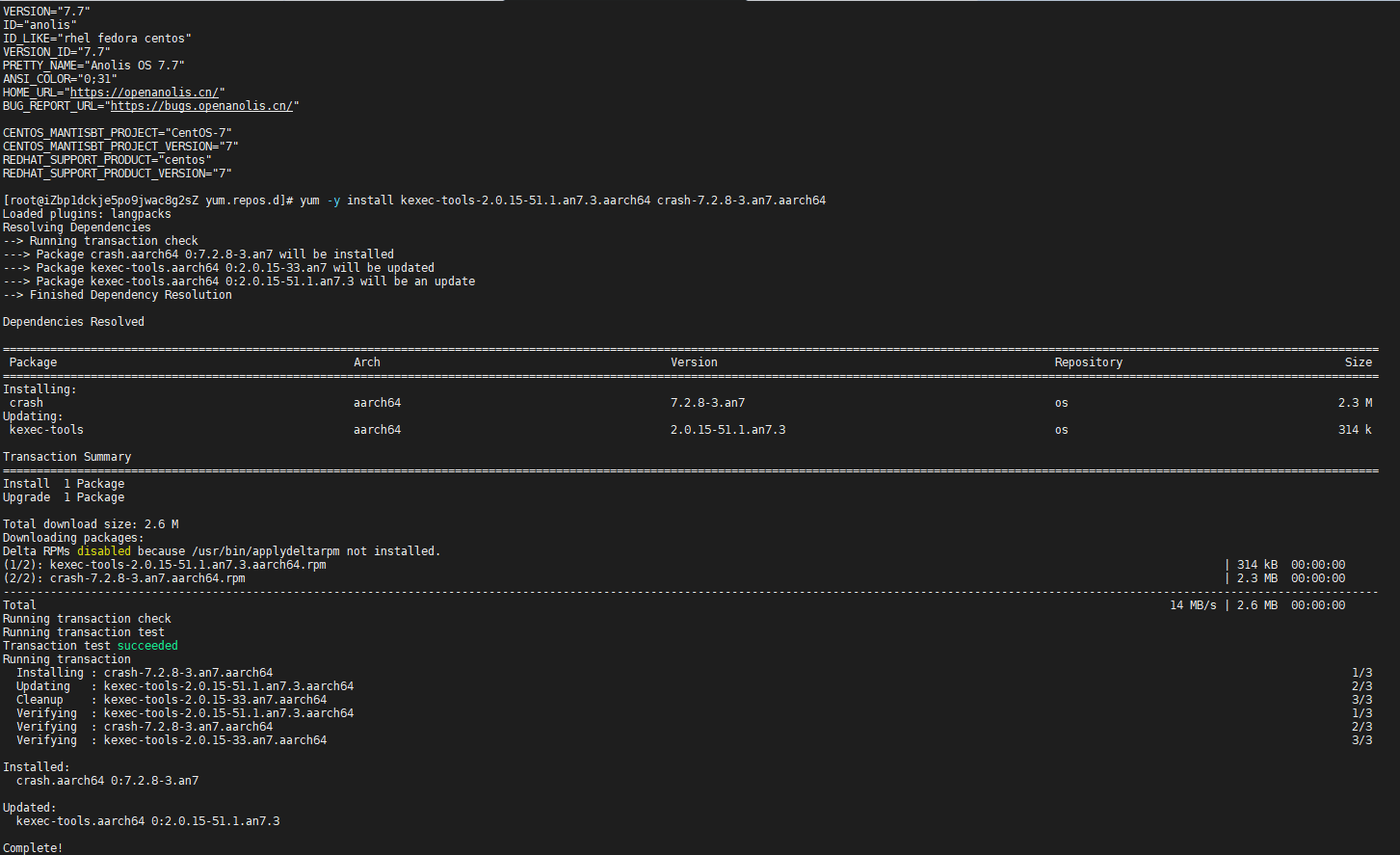

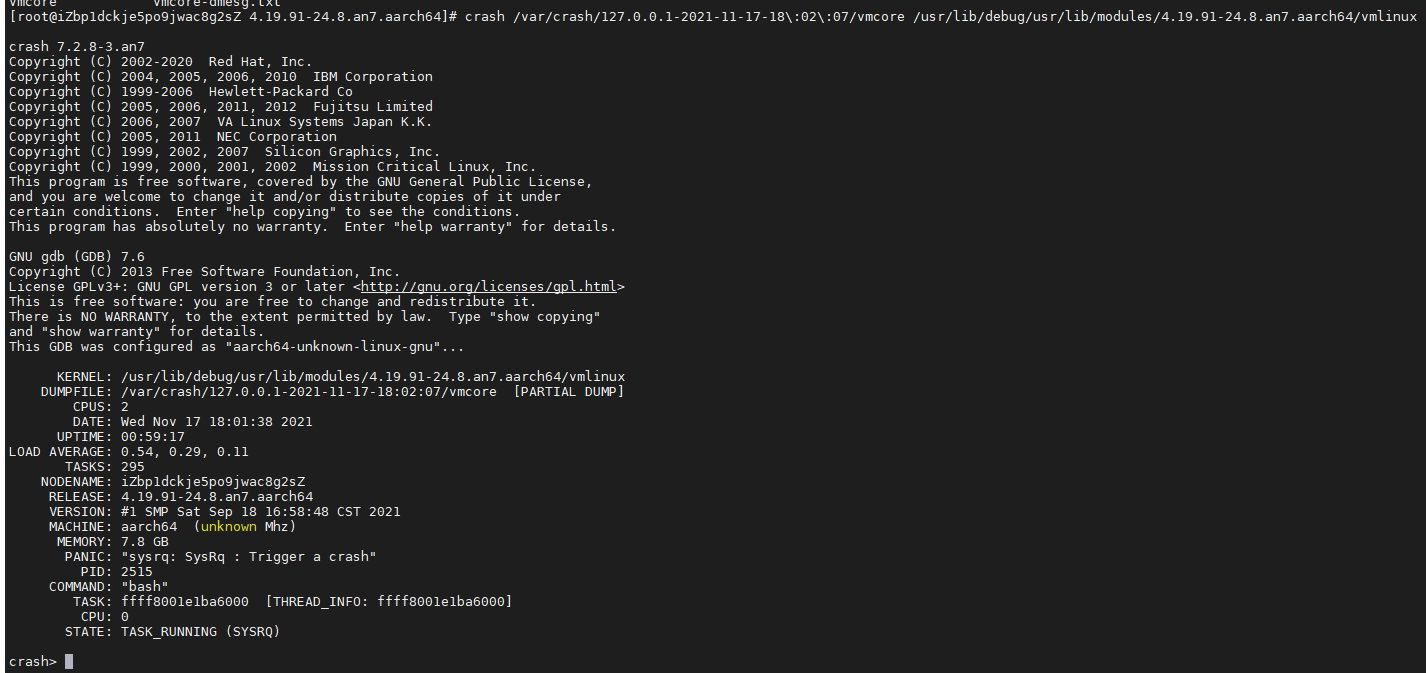

实例镜像: anolisos_7_7_x64_20G_anck_alibase_20211105.vhd anolisos_7_7_arm64_20G_anck_alibase_20211105.vhd 实例规格: x86_64 ecs.g6.large aarch64 ecs.g6r.large 解决方案: 更新发布高版本软件包: crash-7.2.8-3.an7 kexec-tools-2.0.15-51.1.an7.3 验证流程: 1. 安装新版本crash与kexec-tools软件包 2. systemctl restart kdump 3. 手动配置yum源并安装配套的kernel-debuginfo和kernel-debuginfo-common包 4. echo c >/proc/sysrq-trigger触发异常 5. 待重新连接后,通过crash对vmcore进行解析且解析正常 验证结果见图 |
日期 | 用户名 | 字段 | 更改 |
---|---|---|---|
2021-11-08 11:48 | wb-wpp899309 | 新建问题 | |
2021-11-08 11:50 | wb-wpp899309 | 描述已修改 | |
2021-11-08 12:07 | anolislw | 注释已添加: 0000620 | |
2021-11-08 18:20 | wb-wpp899309 | 描述已修改 | |
2021-11-08 18:22 | wb-wpp899309 | 描述已修改 | |
2021-11-10 13:53 | kangwen429 | 注释已添加: 0000653 | |
2021-11-12 15:51 | jacobwang | 分派给 | => yunqi-zwt |
2021-11-12 15:51 | jacobwang | 状态 | 新建 => 已分配 |
2021-11-16 22:25 | yunqi-zwt | 注释已添加: 0000721 | |
2021-11-16 22:25 | yunqi-zwt | 添加了以下文件:: image.png | |
2021-11-17 19:10 | wb-zh951434 | 注释已添加: 0000743 | |
2021-11-17 19:10 | wb-zh951434 | 添加了以下文件:: image-2.png | |
2021-11-17 19:10 | wb-zh951434 | 添加了以下文件:: image-3.png | |
2021-11-17 19:10 | wb-zh951434 | 添加了以下文件:: image-4.png | |
2021-11-17 19:10 | wb-zh951434 | 添加了以下文件:: image-5.png | |
2021-11-17 19:10 | wb-zh951434 | 添加了以下文件:: image-6.png | |
2021-11-17 19:10 | wb-zh951434 | 添加了以下文件:: image-7.png | |
2021-11-18 14:36 | wb-zmy745940 | 状态 | 已分配 => 已解决 |
